GFRP Bent Bars – India’s First, Globally Trusted
MRG Composites manufactures Bent GFRP Rebar in India – pre-curved at the factory into L-hooks, U-bars, stirrups, and custom angles. No on-site cutting. No corrosion. No compromise.

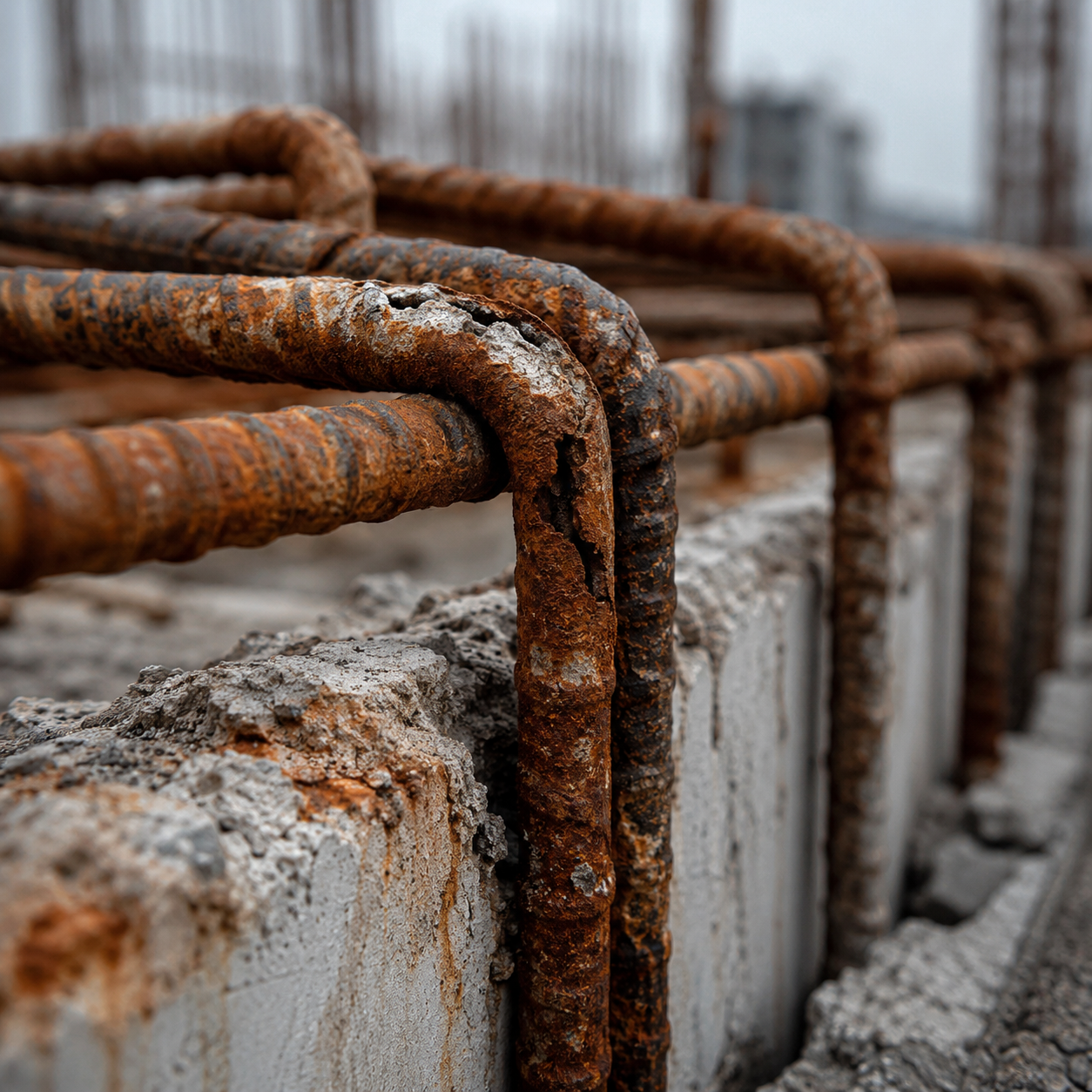

The Hidden Cost Of Steel Bent Rebar – Corrosion At Every Bend
Steel rebar corrodes from the inside out – and the problem accelerates at bend points. When you bend steel on site, the deformation fractures the protective mill scale at exactly the location under the highest stress. Moisture, chlorides, and chemicals get in. Rust expands. Concrete cracks. Structures fail years before they should.
Every steel bent rebar project carries three unavoidable liabilities:
- Corrosion begins at the bend within the first wet season — even in mild environments
- Repair and replacement costs consume 3 to 5 times the original material investment within 15 years
- On-site bending wastes 8 to 12% of raw steel due to off-cuts, errors, and rework
What is Bent GFRP Rebar?
Bent GFRP Rebar – short for Bent Glass Fibre Reinforced Polymer Rebar – is a composite reinforcement bar manufactured from high-tensile glass fibres embedded in a thermosetting polymer resin matrix. MRG Composites forms each bar into its final shape before the resin cures, meaning the bend is part of the bar’s molecular structure – not a mechanical afterthought.
This is the critical difference from steel: you never bend Bent GFRP Rebar on site. Every L-hook, U-bar, stirrup, spiral, or custom angle ships from our factory already formed to your exact specification. The result is a consistent, precise, zero-waste component that drops straight into your formwork.
The composition delivers what no steel product can match in aggressive environments: glass fibres carry the tensile load (with strength-to-weight ratios up to 4x that of steel), while the polymer matrix seals every fibre from moisture, chloride, alkali, and chemical attack – permanently, at every point including the bend.
L-hooks
U-bars
Stirrups (closed loop)
Spiral / helical bars
90° and custom-angle bends
Cranked bars
Why Engineers Choose Bent GFRP Rebar
Permanent Corrosion Resistance
GFRP does not rust — ever. The polymer matrix forms a hermetic seal around every glass fibre, including at the bend radius. Saltwater, chlorides, acids, alkalis, and deicing chemicals cause zero degradation. In coastal, marine, and chemical plant environments, this single property eliminates the largest lifecycle cost in concrete reinforcement.
Lightweight — 75% Lighter Than Steel
At 2.1 g/cm³, Bent GFRP Rebar weighs roughly one-quarter of equivalent steel rebar. A truck that carries 4 tonnes of steel bent rebar carries 16 tonnes worth of Bent GFRP Bars. This directly reduces transportation cost, site labour hours, and crane lift requirements — especially on high-rise and bridge projects where weight compounds at every floor.
High Tensile Strength
Do not let the light weight mislead you. The tensile strength of MRG Composites' Bent GFRP Rebar exceeds 1,000 MPa — more than double the yield strength of standard Fe500 steel rebar. You reinforce the same structural section with less material by weight, and you do it without the brittleness that makes high-strength steel difficult to form.
Non-Conductive and Non-Magnetic
Bent GFRP Rebar conducts neither electricity nor magnetic fields. In MRI facilities, power substations, rail trackbeds, and defence installations, this property is not optional — it is the specification. Use Bent GFRP Bars anywhere that steel would interfere with electromagnetic equipment or create earthing hazards.
Thermal Compatibility with Concrete
The thermal expansion coefficient of Bent GFRP Rebar ranges from 6 to 10 × 10⁻⁶/°C — closely matched to concrete's 10–12 × 10⁻⁶/°C. Steel's coefficient (12 × 10⁻⁶/°C) is similar, but steel develops rust stresses long before thermal stresses become an issue. GFRP eliminates both problems, producing crack-free concrete in environments with large temperature swings.
Factory-Formed to Specification — Zero On-Site Waste
Every Bent GFRP Rebar ships pre-formed to your drawing. No bar-bending machine on site. No cutting waste. No rework when a bend angle is slightly off. Our factory uses precision mandrels with controlled cure cycles, so every hook and stirrup matches the design dimension within ±2 mm. This cuts site labour time for bar-placement by 20 to 35% compared to steel on large-deck projects.
Low Lifetime Cost — Best Bent GFRP Rebar Price Per Year of Service
When engineers ask about Bent GFRP Rebar price, the right question is not the per-metre purchase cost — it is the cost per year of service life. Steel bent rebar requires inspection cycles, coating repairs, and structural remediation starting from year 10 to 15 in aggressive environments. Bent GFRP Bars carry no such maintenance schedule. Over a 50-year project life, the total cost of ownership consistently favours GFRP by a margin of 30 to 60%.
Bent GFRP Rebar Vs Steel Rebar – Full Comparison
| Property | Bent GFRP Rebar (MRG) | Steel Bent Rebar |
|---|---|---|
| Weight | ~2.1 g/cm³ — 75% lighter than steel | ~7.85 g/cm³ — heavy; crane-lift often required |
| Corrosion resistance | ✔ Zero — permanent. Immune to salt, chloride, acid, alkali | ✘ High — corrodes at bend points; accelerates in wet/coastal environments |
| Tensile strength | >1,000 MPa — exceeds Fe500/550D steel | ~500 MPa yield (Fe500); higher grades are brittle |
| Thermal expansion | 6–10 × 10⁻⁶/°C — close match to concrete | 12 × 10⁻⁶/°C — mismatch can cause micro-cracking |
| Magnetic / electrical | ✔ Non-magnetic, non-conductive — safe for MRI, defence, rail | ✘ Magnetic and conductive — not suitable for EMI-sensitive structures |
| On-site bending | ✔ Not required — pre-formed at factory to ±2 mm tolerance | ✘ Requires bar-bending machine; mill scale fractures at bend |
| Maintenance cost | ✔ Near-zero — no coatings, no inspection cycles needed | ✘ High — regular inspection, cathodic protection, or replacement |
| Design life | 75+ years with no corrosion degradation | 15–25 years in aggressive environments before major repair |
| BIS certification (India) | ✔ IS 16651 — MRG holds India's first GFRP BIS licence | IS 1786 — widely specified but prone to site-corrosion failures |
Where Do Engineers Specify Bent GFRP Rebar?
Bent GFRP Bars reinforce structures where corrosion resistance, weight reduction, or electromagnetic neutrality determines long-term performance. Below are the five environments where MRG Composites Bent GFRP Rebar consistently outperforms steel.
Industrial Flooring
Manufacturing facilities, chemical processing plants, and food production floors expose rebar to acids, alkalis, oils, and cleaning agents daily. Steel corrodes, expands, and cracks the floor slab — shutting down production lines. Bent GFRP Rebar in base slab edge details, pile caps, and ground beam stirrups resists every common industrial chemical. MRG Composites supplied Bent GFRP Bars for industrial flooring projects in Bavla and Amravati — both have operated without structural maintenance since installation.
Roads, Highways, and Medians
Median barriers, curb details, retaining wall hooks, and road foundation edge bars are chronically under-protected in Indian highway construction. MRG Composites delivered Bent GFRP Rebar for the Six-Lane Karala-Kanjhawala Road project in Delhi, where the lightweight of Bent GFRP Bars reduced placement time significantly and eliminated rework from on-site mis-bending. Bent GFRP Rebar cost on road projects compares favourably when you factor out bar-bending labour and on-site wastage.
Bridge Decks and Curbs
Bridge decks take the heaviest corrosion punishment of any concrete structure — deicing salts, freeze-thaw cycles, and constant moisture penetration. Specifying Bent GFRP Rebar for L-hooks, stirrups, and edge-beam reinforcement eliminates chloride-induced corrosion at the bend radius — the exact failure point that has forced costly deck replacements across major highway networks. Expect 75+ years of service without protective coatings or cathodic protection systems.
Marine Structures — Piers, Docks, Seawalls
Saltwater is steel's most aggressive enemy. Tidal splash zones concentrate chlorides at reinforcement cover depth, and conventional epoxy-coated steel only delays the inevitable. Bent GFRP Rebar is immune — no coating, no cathodic protection, no scheduled inspection for corrosion. Specify it for all bent details in jetties, seawalls, wave breakers, and coastal retaining walls where maintenance access is difficult and failure consequence is high.
Tunnels and Underground Structures
Underground structures trap moisture, often encounter aggressive groundwater, and provide no access for post-construction maintenance. Bent GFRP Rebar's non-magnetic property also matters here — it does not interfere with tunnelling machinery sensors or underground rail signalling systems. The weight advantage simplifies handling in confined spaces, and factory pre-forming eliminates the need for bar-bending equipment underground.
Bent GFRP Rebar Shapes, Diameters, And Custom Orders
| Shape | Typical application | Available diameters |
|---|---|---|
| L-hook | Foundation, pile cap, wall-to-slab connections | 8, 10, 12, 16, 20 mm |
| U-bar | Edge beams, capping beams, bridge decks | 8, 10, 12, 16 mm |
| Closed stirrup | Column and beam confinement | 6, 8, 10, 12 mm |
| Spiral / helical | Column confinement, pile reinforcement | 6, 8, 10 mm |
| 90° cranked bar | Slab-to-wall, offset transitions | 10, 12, 16, 20 mm |
| Custom angle | Any geometry per project drawing | 6 to 32 mm — confirm on enquiry |
Custom orders: Send us your bending schedule or shop drawing. Our team reviews your geometry within 24 hours and confirms minimum bend radius, feasibility, and Bent GFRP Rebar price per unit. Standard lead time is 7 to 14 working days from order confirmation. Minimum bend radius: 3× bar diameter (e.g., 30 mm radius for 10 mm bar). Tighter radii are available for selected diameters — enquire directly.
Certifications That Let Engineers Specify with Confidence
BIS Licence — IS 16651 (India's First)
MRG Composites is the first manufacturer in India to receive BIS certification for GFRP Rebar under IS 16651. This licence validates that our manufacturing process, raw materials, and finished product meet the Bureau of Indian Standards' requirements for glass fibre reinforced polymer bars used in structural concrete. For any project requiring domestically certified GFRP reinforcement, our BIS licence is the specification-ready credential.
ISO 9001:2015 — Quality Management System
Our entire manufacturing operation operates under ISO 9001:2015. Every batch of Bent GFRP Rebar undergoes documented quality checks at each production stage — fibre tensioning, resin impregnation, forming, cure, and dimensional inspection. You receive traceability documentation with every order.
Make in India
All MRG Composites GFRP products, including Bent GFRP Bars, are manufactured in India at our Rajkot facility. This qualifies them for Make in India preference in public procurement and government infrastructure tenders.
Get Bent GFRP Rebar — India's Best Price, Fastest Delivery

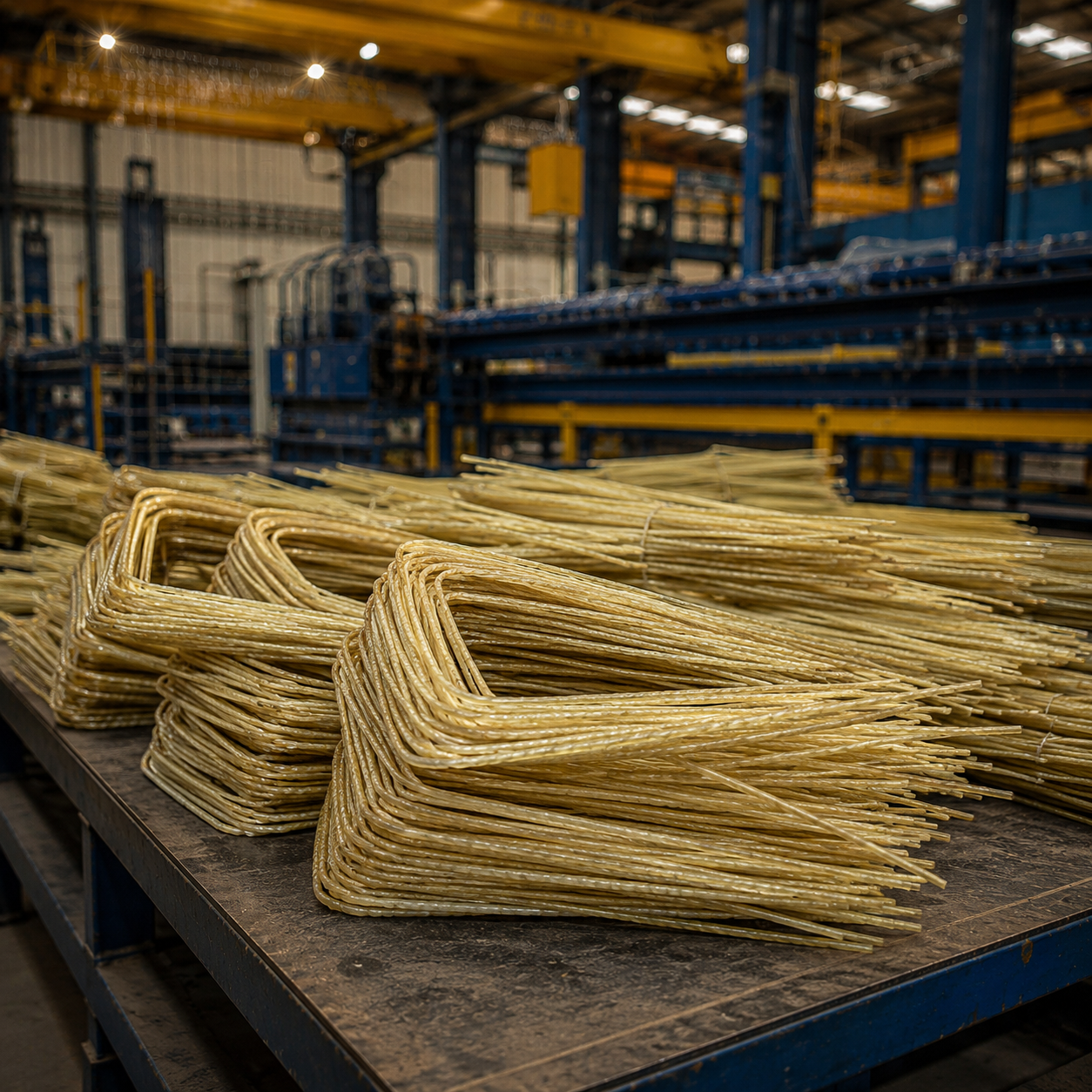

Get A QuoteAbout MRG Composites – India’s First BIS-Licensed GFRP Rebar Manufacturer
MRG Composites is India’s pioneer manufacturer of GFRP Rebar, Bent GFRP Rebar, and GFRP Mesh. Operating from our ISO 9001:2015 certified facility in Halol, Gujarat, MRG is the first and only BIS-licensed manufacturer of GFRP bars under IS 18256 — an accreditation that validates structural conformance of these composite reinforcement bars for domestic infrastructure projects.
Our pre-curved components are used in highways, tunnels, marine walls, and mass transit projects across the country. By utilizing high-quality glass fibers and a premium thermoset resin matrix, we deliver structural bars that carry the load without failure, permanent rust, or thermal mismatch issues, guaranteeing exceptional engineering performance.
We maintain a dedicated testing laboratory for mechanical and chemical analysis, which guarantees that every batch conforms to quality, tensile, and flexural metrics in strict accordance with BIS guidelines. Read more to see why engineers and builders across India select MRG Composites.
Have Questions?We've Got Answers
Get In Touch
Looking for high-strength, corrosion-resistant GFRP rebar for your construction or infrastructure project? Share your requirements and our manufacturing team will provide a tailored quote and technical guidance.
